IX-Series

IX-series is a vision inspection machine that performs inspection through 8 cameras
at the same time in the production process of 500PPM or less.
It is mainly used for expiration date (OCR) inspection, missing inspection, label inspection, etc.,
and there are cases of application to band sealers (horizontal/vertical), three-sided packaging machines, and rotary packaging lines.

Application case

We design process standards for each manufacturer and identify product defects based on rules based on those standards.
It is best used when there are 4 or more inspection items.

  • Soy Cap/OCR Inspection

  • Grape jam cap/OCR Inspection

  • Beverage Cap/OCR Inspection

Tech Specs

Model

IX300

Korean GUI

  • Visionscape Software
  • Product detection sensor or contact point
  • 500ppm or less recommended
  • Mounts up to 8 cameras

Camera

  • Basler
  • * 1280*1024, mono, Lens(8mm)

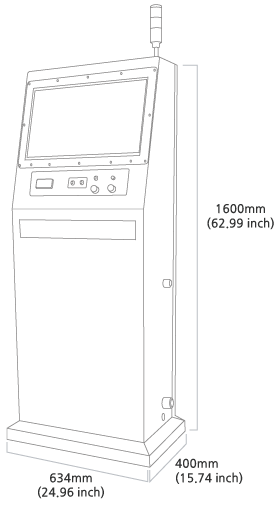

Kiosk

  • * Breakers, POWER SUPPLY, PLC
  • * Warning light, RELAY, On/Off switch, Emergency switch
  • * Wireless mouse, Mouse stand(SS304), Mouse pad

Exterior lighting

Bar lighting or Spot lighting

PC specs

  • IPRISM PC
  • Intel i5 CPU
    Window 10 pro
  • 22 inches display (1920x1080)
  • Memory: DDR4 8GB_4x_Duel CH
    Drive: SSD_M.2 256GB
    Video: UHD_Graphic
    Ethernet: 1Gbps, 2.5Gbps / WiFi

Optional

  • Camera Color camera
  • Lens 5mm/ 12mm/ 16mm/ 25mm/ 35mm/ 50mm
  • PLC Contact 32(Standard)/ additional contact points
  • Memory 8GB(Standard)/ 16GB
  • External Drive(HDD): 2TB, 4TB
  • Camera Cable: 5m(Standard)/ 7m/ 10m/ 15m/ 20m
  • Change(or Add) Lighting: Backlight/ Tunnel Dome/ Flat Dome/ Round Dome/ Ring/ Coaxial/ Waterproof
  • Rejecting: Air or Cylinder/ Accept Reject/ Locking Device/ Safety Cover & Sensor
  • Sensor: Rejecting Sensor/ Rejecting Completion Sensor/ Full Sensor/ Air Pressure Sensor
  • Reader: 1D/ 2D/ Cable/ Wireless
  • Encoder: 40/ 100/ 360
  • UPS: 1500VA
  • SPD
  • Horn Speaker
  • Timestamp interlock
  • Checkweigher Linkage
  • MES
  • Pusher For Alignment
  • Anti-Flap Guide
  • Conveyor

Model

IX400

Korean GUI

  • Visionscape Software
  • Product detection sensor or contact point
  • 500ppm or less recommended
  • Mounts up to 8 cameras

Camera

  • Basler
  • * 1600*1200, mono, Lens(8mm)

Kiosk

  • * Breakers, POWER SUPPLY, PLC
  • * Warning light, RELAY, On/Off switch, Emergency switch
  • * Wireless mouse, Mouse stand(SS304), Mouse pad

Exterior lighting

Bar lighting or Spot lighting

PC specs

  • IPRISM PC
  • Intel i5 CPU
    Window 10 pro
  • 22 inches display (1920x1080)
  • Memory: DDR4 8GB_4x_Duel CH
    Drive: SSD_M.2 256GB
    Video: UHD_Graphic
    Ethernet: 1Gbps, 2.5Gbps / WiFi

Optional

  • Camera Color camera
  • Lens 5mm/ 12mm/ 16mm/ 25mm/ 35mm/ 50mm
  • PLC Contact 32(Standard)/ additional contact points
  • Memory 8GB(Standard)/ 16GB
  • External Drive(HDD): 2TB, 4TB
  • Camera Cable: 5m(Standard)/ 7m/ 10m/ 15m/ 20m
  • Change(or Add) Lighting: Backlight/ Tunnel Dome/ Flat Dome/ Round Dome/ Ring/ Coaxial/ Waterproof
  • Rejecting: Air or Cylinder/ Accept Reject/ Locking Device/ Safety Cover & Sensor
  • Sensor: Rejecting Sensor/ Rejecting Completion Sensor/ Full Sensor/ Air Pressure Sensor
  • Reader: 1D/ 2D/ Cable/ Wireless
  • Encoder: 40/ 100/ 360
  • UPS: 1500VA
  • SPD
  • Horn Speaker
  • Timestamp Interlock
  • Checkweigher Linkage
  • MES
  • Pusher For Alignment
  • Anti-Flap Guide
  • Conveyor

Model

IX500

Korean GUI

  • Visionscape Software
  • Product detection sensor or contact point
  • 500ppm or less recommended
  • Mounts up to 8 cameras

Camera

  • Basler
  • * 1280*1024, mono, Lens(8mm)

Kiosk

  • * Breakers, POWER SUPPLY, PLC
  • * Warning light, RELAY, On/Off switch, Emergency switch
  • * Wireless mouse, Mouse stand(SS304), Mouse pad

Exterior lighting

Bar lighting or Spot lighting

PC specs

  • IPRISM PC
  • Intel i5 CPU
    Window 10 pro
  • 22 inches display (1920x1080)
  • Memory: DDR4 8GB_4x_Duel CH
    Drive: SSD_M.2 256GB
    Video: RTX_Graphic
    Ethernet: 1Gbps, 2.5Gbps / WiFi

Optional

  • Camera Color camera
  • Lens 5mm/ 12mm/ 16mm/ 25mm/ 35mm/ 50mm
  • PLC Contact 16(Standard)/ 32
  • Memory 8GB(Standard)/ 16GB
  • External Drive(HDD): 2TB, 4TB
  • Camera Cable: 5m(Standard)/ 7m/ 10m/ 15m/ 20m
  • Change(or Add) Lighting: Backlight/ Tunnel Dome/ Flat Dome/ Round Dome/ Ring/ Coaxial/ Waterproof
  • Rejecting: Air or Cylinder/ Accept Reject/ Locking Device/ Safety Cover & Sensor
  • Sensor: Rejecting Sensor/ Rejecting Completion Sensor/ Full Sensor/ Air Pressure Sensor
  • Reader: 1D/ 2D/ Cable/ Wireless
  • Controller: 120 degree rotation type/ wall type/ bottom type/ wall angle adjustment type/ stand type/ urethane wheels
  • Encoder: 40/ 100/ 360
  • UPS: 1100VA
  • SPD
  • Horn Speaker
  • Timestamp interlock
  • Checkweigher Linkage
  • MES
  • Pusher For Alignment
  • Anti-Flap Guide
  • Conveyor
  • AI(180ppm max)

Model

IX600

Korean GUI

  • Visionscape Software
  • Product detection sensor or contact point
  • 500ppm or less recommended
  • Mounts up to 8 cameras

Camera

  • Basler
  • * 1600*1200, mono, Lens(8mm)

Kiosk

  • * Breakers, POWER SUPPLY, PLC
  • * Warning light,, RELAY, On/Off switch, Emergency switch
  • * Wireless mouse, Mouse stand(SS304), Mouse pad

Exterior lighting

Bar lighting or Spot lighting

PC specs

  • IPRISM PC
  • Intel i5 CPU
    Window 10 pro
  • 22 inches display (1920x1080)
  • Memory: DDR4 8GB_4x_Duel CH
    Drive: SSD_M.2 256GB
    Video: RTX_Graphic
    Ethernet: 1Gbps, 2.5Gbps / WiFi

Optional

  • Camera Color camera
  • Lens 5mm/ 12mm/ 16mm/ 25mm/ 35mm/ 50mm
  • PLC Contact 16(Standard)/ 32
  • Memory 8GB(Standard)/ 16GB
  • External Drive(HDD): 2TB, 4TB
  • Camera Cable: 5m(Standard)/ 7m/ 10m/ 15m/ 20m
  • Change(or Add) Lighting: Backlight/ Tunnel Dome/ Flat Dome/ Round Dome/ Ring/ Coaxial/ Waterproof
  • Rejecting: Air or Cylinder/ Accept Reject/ Locking Device/ Safety Cover & Sensor
  • Sensor: Rejecting Sensor/ Rejecting Completion Sensor/ Full Sensor/ Air Pressure Sensor
  • Reader: 1D/ 2D/ Cable/ Wireless
  • Controller: 120 degree rotation type/ wall type/ bottom type/ wall angle adjustment type/ stand type/ urethane wheels
  • Encoder: 40/ 100/ 360
  • UPS: 1100VA
  • SPD
  • Horn Speaker
  • Timestamp interlock
  • Checkweigher Linkage
  • MES
  • Pusher For Alignment
  • Anti-Flap Guide
  • Conveyor
  • AI(150ppm max)
