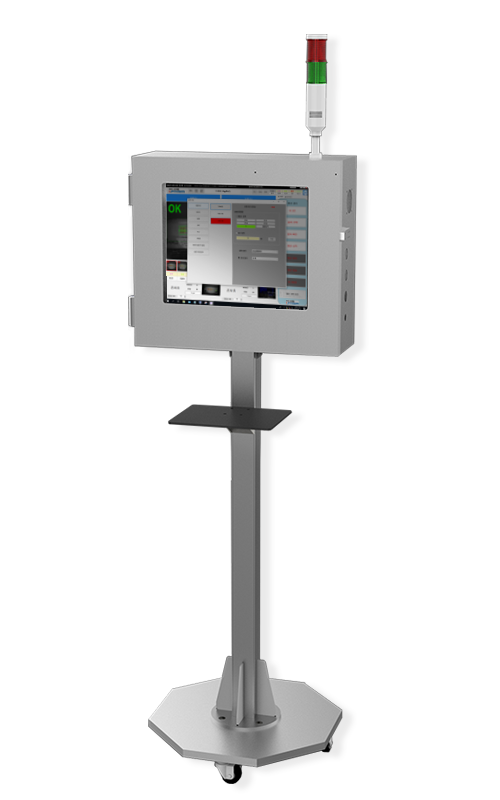

IV-Series

IV-series performs vision inspection for 2 cameras at the same time in the production process below 120PPM~300PPM.
It is mainly used for expiration date (OCR) inspection, missing inspection, label inspection, etc.,
and there are cases of application to band sealers (horizontal/vertical), three-sided packaging machines, and rotary packaging lines.

Application case

We design process standards for each manufacturer and identify product defects based on rules based on those standards.
In addition, the user-friendly UI makes it easy to check the work, and the touch system makes operation simple.

  • Packaged Kimchi OCR/Barcode Inspection

  • Character Bread OCR Inspection

  • Chicken Sauce OCR Inspection

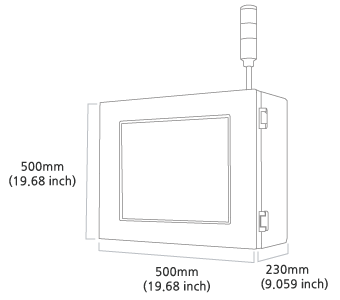

Tech Specs

Model

IV100

Korean GUI

  • Visionscape Software
  • Product detection sensor or contact point
  • 120ppm ~ 300ppm or less recommended
  • Mounts up to 2 cameras

Camera

  • Basler
  • * 1280*1024, mono, Lens(8mm)

Standard Type

  • * Breakers, POWER SUPPLY, PLC
  • * Warning light, RELAY, On/Off switch, Emergency switch
  • * Wireless mouse, Mouse stand(SS304), Mouse pad

Exterior lighting

Bar lighting or Spot lighting

PC specs

  • Via PC
  • Intel i5 4200U
    Window 10 pro
  • 17 inches display (1280x1024)
  • Memory: DDR3 4GB
    Drive: SSD_mSATA128GB
    Video: GMA3150
    Ethernet: 1Gbps / WiFi

Optional

  • Camera Color camera
  • Lens 5mm/ 12mm/ 16mm/ 25mm/ 35mm/ 50mm
  • PLC Contact 16점(Standard)/ 32
  • Memory 4GB(Standard)/ 8GB
  • External Drive(HDD): 2TB, 4TB
  • Camera Cable: 5m(Standard)/ 7m/ 10m/ 15m/ 20m
  • Change(or Add) Lighting: Backlight/ Tunnel Dome/ Flat Dome/ Round Dome/ Ring/ Coaxial/ Waterproof
  • Rejecting: Air or Cylinder/ Accept Reject/ Locking Device/ Safety Cover & Sensor
  • Sensor: Rejecting Sensor/ Rejecting Completion Sensor/ Full Sensor/ Air Pressure Sensor
  • Reader: 1D/ 2D/ Cable/ Wireless
  • Controller: 1120 degree rotation type/ wall type/ bottom type/ wall angle adjustment type/ stand type/ urethane wheels
  • Encoder: 40/ 100/ 360
  • UPS: 1100VA
  • SPD
  • Horn Speaker
  • Timestamp interlock
  • Checkweigher Linkage
  • MES
  • Pusher For Alignment
  • Anti-Flap Guide
  • Conveyor
  •

Model

IV200

Korean GUI

  • Visionscape Software
  • Product detection sensor or contact point
  • 200ppm or less recommended
  • Mounts up to 2 cameras

Korean

  • Basler
  • * 1600*1200, mono, Lens(8mm)

Standard Type

  • * Breakers, POWER SUPPLY, PLC
  • * Warning light, RELAY, On/Off switch, Emergency switch
  • * Wireless mouse, Mouse stand(SS304), Mouse pad

Exterior lighting

Bar lighting or Spot lighting

PC specs

  • Via PC
  • Intel i5 4200U
    Window 10 pro
  • 17 inches display (1280x1024)
  • Memory: DDR3 4GB
    Drive: SSD_mSATA128GB
    Video: GMA3150
    Ethernet: 1Gbps / WiFi

Optional

  • Camera Color camera
  • Lens 5mm/ 12mm/ 16mm/ 25mm/ 35mm/ 50mm
  • PLC Contact 16(Standard)/ 32
  • Memory 4GB(Standard)/ 8GB
  • External Drive(HDD): 2TB, 4TB
  • Camera Cable: 5m(Standard)/ 7m/ 10m/ 15m/ 20m
  • Change(or Add) Lighting: Backlight/ Tunnel Dome/ Flat Dome/ Round Dome/ Ring/ Coaxial/ Waterproof
  • Rejecting: Air or Cylinder/ Accept Reject/ Locking Device/ Safety Cover & Sensor
  • Sensor: Rejecting Sensor/ Rejecting Completion Sensor/ Full Sensor/ Air Pressure Sensor
  • Reader: 1D/ 2D/ Cable/ Wireless
  • Controller: 120 degree rotation type/ wall type/ bottom type/ wall angle adjustment type/ stand type/ urethane wheels
  • Encoder: 40/ 100/ 360
  • UPS: 1100VA
  • SPD
  • Horn Speaker
  • Timestamp interlock
  • Checkweigher Linkage
  • MES
  • Pusher For Alignment
  • Anti-Flap Guide
  • Conveyor
  •

Model

IV300

Korean GUI

  • Visionscape Software
  • Product detection sensor or contact point
  • 500ppm or less recommended
  • Mounts up to 2 cameras

Camera

  • Basler
  • * 1280x1024, mono, Lens(8mm)

Standard Type

  • * Breakers, POWER SUPPLY, PLC
  • * Warning light, RELAY, On/Off switch, Emergency switch
  • * Wireless mouse, Mouse stand(SS304), Mouse pad

Exterior lighting

Bar lighting or Spot lighting

PC specs

  • IPRISM PC
  • Intel i5 4200U
    Window 10 pro
  • 17 inches display (1280x1024)
  • Memory: DDR3 4GB
    Drive: SSD_mSATA128GB
    Video: GMA3150
    Ethernet: 1Gbps / WiFi

Optional

  • Camera Color camera
  • Lens 5mm/ 12mm/ 16mm/ 25mm/ 35mm/ 50mm
  • PLC Contact 16(Standard)/ 32
  • Memory 8GB(Standard)/ 16GB
  • External Drive(HDD): 2TB, 4TB
  • Camera Cable: 5m(Standard)/ 7m/ 10m/ 15m/ 20m
  • Change(or Add) Lighting: Backlight/ Tunnel Dome/ Flat Dome/ Round Dome/ Ring/ Coaxial/ Waterproof
  • Rejecting: Air or Cylinder/ Accept Reject/ Locking Device/ Safety Cover & Sensor
  • Sensor: Rejecting Sensor/ Rejecting Completion Sensor/ Full Sensor/ Air Pressure Sensor
  • Reader: 1D/ 2D/ Cable/ Wireless
  • Controller: 120 degree rotation type/ wall type/ bottom type/ wall angle adjustment type/ stand type/ urethane wheels
  • Encoder: 40/ 100/ 360
  • UPS: 1100VA
  • SPD
  • Horn Speaker
  • Timestamp interlock
  • Checkweigher Linkage
  • MES
  • Pusher For Alignment
  • Anti-Flap Guide
  • Conveyor

Model

IV400

Korean GUI

  • Visionscape Software
  • Product detection sensor or contact point
  • 120ppm ~ 300ppm or less recommended
  • Mounts up to 2 cameras

Camera

  • Basler
  • * 1600x1200, mono, Lens(8mm)

Standard Type

  • * Breakers, POWER SUPPLY, PLC
  • * Warning light, RELAY, On/Off switch, Emergency switch
  • * Wireless mouse, Mouse stand(SS304), Mouse pad

Exterior lighting

Bar lighting or Spot lighting

PC specs

  • IPRISM PC
  • Intel i5 4200U
    Window 10 pro
  • 17 inches display (1280x1024)
  • Memory: DDR3 4GB
    Drive: SSD_mSATA128GB
    Video: GMA3150
    Ethernet: 1Gbps / WiFi

Optional

  • Camera Color camera
  • Lens 5mm/ 12mm/ 16mm/ 25mm/ 35mm/ 50mm
  • PLC Contact 16(Standard)/ 32
  • Memory 8GB(Standard)/ 16GB
  • External Drive(HDD): 2TB, 4TB
  • Camera Cable: 5m(Standard)/ 7m/ 10m/ 15m/ 20m
  • Change(or Add) Lighting: Backlight/ Tunnel Dome/ Flat Dome/ Round Dome/ Ring/ Coaxial/ Waterproof
  • Rejecting: Air or Cylinder/ Accept Reject/ Locking Device/ Safety Cover & Sensor
  • Sensor: Rejecting Sensor/ Rejecting Completion Sensor/ Full Sensor/ Air Pressure Sensor
  • Reader: 1D/ 2D/ Cable/ Wireless
  • Controller: 120 degree rotation type/ wall type/ bottom type/ wall angle adjustment type/ stand type/ urethane wheels
  • Encoder: 40/ 100/ 360
  • UPS: 1100VA
  • SPD
  • Horn Speaker
  • Timestamp interlock
  • Checkweigher Linkage
  • MES
  • Pusher For Alignment
  • Anti-Flap Guide
  • Conveyor
  •

Model

IV500

Korean GUI

  • Visionscape Software
  • Product detection sensor or contact point
  • 960ppm or less recommended
  • Mounts up to 2 cameras

Camera

  • Basler
  • * 1280x1024, mono, Lens(8mm)

Standard Type

  • * Breakers, POWER SUPPLY, PLC
  • * Warning light, RELAY, On/Off switch, Emergency switch
  • * Wireless mouse, Mouse stand(SS304), Mouse pad

Exterior lighting

Bar lighting or Spot lighting

PC specs

  • IPRISM PC
  • Intel i5 4200U
    Window 10 pro
  • 17 inches display (1280x1024)
  • Memory: DDR3 4GB
    Drive: SSD_mSATA128GB
    Video: GMA3150
    Ethernet: 1Gbps / WiFi

Optional

  • Camera Color camera
  • Lens 5mm/ 12mm/ 16mm/ 25mm/ 35mm/ 50mm
  • PLC Contact 16(Standard)/ 32
  • Memory 8GB(Standard)/ 16GB
  • External Drive(HDD): 2TB, 4TB
  • Camera Cable: 5m(Standard)/ 7m/ 10m/ 15m/ 20m
  • Change(or Add) Lighting: Backlight/ Tunnel Dome/ Flat Dome/ Round Dome/ Ring/ Coaxial/ Waterproof
  • Rejecting: Air or Cylinder/ Accept Reject/ Locking Device/ Safety Cover & Sensor
  • Sensor: Rejecting Sensor/ Rejecting Completion Sensor/ Full Sensor/ Air Pressure Sensor
  • Reader: 1D/ 2D/ Cable/ Wireless
  • Controller: 120 degree rotation type/ wall type/ bottom type/ wall angle adjustment type/ stand type/ urethane wheels
  • Encoder: 40/ 100/ 360
  • UPS: 1100VA
  • SPD
  • Horn Speaker
  • Timestamp interlock
  • Checkweigher Linkage
  • MES
  • Pusher For Alignment
  • Anti-Flap Guide
  • Conveyor
  •

Model

IV600

Korean GUI

  • Visionscape Software
  • Product detection sensor or contact point
  • 600ppm or less recommended
  • Mounts up to 2 cameras

Camera

  • Basler
  • * 1280x1024, mono, Lens(8mm)

Standard Type

  • * Breakers, POWER SUPPLY, PLC
  • * Warning light, RELAY, On/Off switch, Emergency switch
  • * Wireless mouse, Mouse stand(SS304), Mouse pad

Exterior lighting

Bar lighting or Spot lighting

PC specs

  • IPRISM PC
  • Intel i5 12th
    Window 10 pro
  • 17 inches display (1280x1024)
  • Memory: DDR3 4GB
    Drive: SSD_mSATA128GB
    Video: GMA3150
    Ethernet: 1Gbps / WiFi

Optional

  • Camera Color camera
  • Lens 5mm/ 12mm/ 16mm/ 25mm/ 35mm/ 50mm
  • PLC Contact 16(Standard)/ 32
  • Memory 8GB(Standard)/ 16GB
  • External Drive(HDD): 2TB, 4TB
  • Camera Cable: 5m(Standard)/ 7m/ 10m/ 15m/ 20m
  • Change(or Add) Lighting: Backlight/ Tunnel Dome/ Flat Dome/ Round Dome/ Ring/ Coaxial/ Waterproof
  • Rejecting: Air or Cylinder/ Accept Reject/ Locking Device/ Safety Cover & Sensor
  • Sensor: Rejecting Sensor/ Rejecting Completion Sensor/ Full Sensor/ Air Pressure Sensor
  • Reader: 1D/ 2D/ Cable/ Wireless
  • Controller: 120 degree rotation type/ wall type/ bottom type/ wall angle adjustment type/ stand type/ urethane wheels
  • Encoder: 40/ 100/ 360
  • UPS: 1100VA
  • SPD
  • Horn Speaker
  • Timestamp interlock
  • Checkweigher Linkage
  • MES
  • Pusher For Alignment
  • Anti-Flap Guide
  • Conveyor
  • AI(150ppm max)
