IM-Series

IM-series performs a single inspection per product in the production process of 200 to 500 PPM.
It is mainly used for expiration date (OCR) inspection, missing inspection, label inspection, etc.,
and there are cases of application to band sealers (horizontal/vertical), three-sided packaging machines, and rotary packaging lines.

Application case

We design process standards for each manufacturer and identify product defects based on rules based on those standards.
In addition, the user-friendly UI makes it easy to check the work, and the touch system makes operation simple.

  • Seasoning OCR Inspection

  • Box packaging OCR inspection

  • Dumpling packaging (for export to the US) OCR inspection

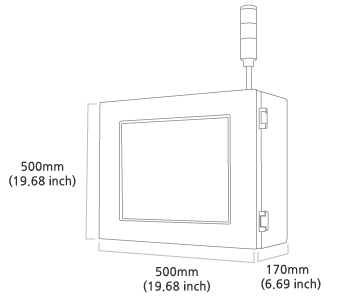

Tech Specs

Model

IM100

Korean GUI

  • Visionscape Software
  • Product detection sensor or contact point
  • 200ppm or less recommended

Camera

  • MV40
  • * 752x480, mono, AV+VS
  • * 102mm fixed focus

Via PC

  • * Breakers, POWER SUPPLY, PLC
  • * Warning light,, RELAY, On/Off switch, Emergency switch
  • * Wireless mouse, Mouse stand(SS304), Mouse pad

Exterior lighting

Bar lighting or Spot lighting

PC specs

  • Via PC
  • 6th Gen Intel®Core i5 CPU
    Window 10 pro
  • 17 inches display (1280x1024)
  • Memory: DDR3 4GB
    Drive: SSD 120GB
    Video: Onboard VGA Intel GMA 3150
    Ethernet: 1Gbps

Optional

  • PLC Contact 16/ 32
  • Memory 4GB/ 8GB
  • External Drive(HDD): 2TB, 4TB
  • Camera Cable: 5m(Standard)/ 7m/ 10m/ 15m/ 20m
  • Change(or Add) Lighting: Backlight/ Tunnel Dome/ Flat Dome/ Round Dome/ Ring/ Coaxial/ Waterproof
  • Rejecting: Air or Cylinder/ Accept Reject/ Locking Device/ Safety Cover & Sensor
  • Sensor: Rejecting Sensor/ Rejecting Completion Sensor/ Full Sensor/ Air Pressure Sensor
  • Reader: 1D/ 2D/ Cable/ Wireless
  • Encoder: 40/ 100/ 360
  • UPS: 1100VA
  • SPD
  • Horn Speaker
  • Anti-Flap Guide

Model

IM200

Korean GUI

  • Visionscape Software
  • Product detection sensor or contact point
  • 120ppm or less recommended

Camera

  • Basler
  • * 1280x960, mono, AV+VS
  • * Auto focus

Via PC

  • * Breakers, POWER SUPPLY, PLC
  • * Warning light, RELAY, On/Off switch, Emergency switch
  • * Wireless mouse, Mouse stand(SS304), Mouse pad

Exterior lighting

Bar lighting or Spot lighting

PC specs

  • Via PC
  • 6th Gen Intel®Core i5 CPU
    Window 10 pro
  • 17 inches display (1280x1024)
  • Memory: DDR3 4GB
    Drive: SSD 120GB
    Video: Onboard VGA Intel GMA 3150
    Ethernet: 1Gbps

Optional

  • PLC Contact 16/ 32
  • Memory 4GB/ 8GB
  • External Drive(HDD): 2TB, 4TB
  • Camera Cable: 5m(Standard)/ 7m/ 10m/ 15m/ 20m
  • Change(or Add) Lighting: Backlight/ Tunnel Dome/ Flat Dome/ Round Dome/ Ring/ Coaxial/ Waterproof
  • Rejecting: Air or Cylinder/ Accept Reject/ Locking Device/ Safety Cover & Sensor
  • Sensor: Rejecting Sensor/ Rejecting Completion Sensor/ Full Sensor/ Air Pressure Sensor
  • Reader: 1D/ 2D/ Cable/ Wireless
  • Encoder: 40/ 100/ 360
  • UPS: 1100VA
  • SPD
  • Horn Speaker
  • Anti-Flap Guide
